Displaying Spectra#

Because of its use of glue as the underlying data-handling layer and its applicability in several different contexts, Specviz takes a modular approach to displaying data that has been loaded.

The first spectrum you load will be automatically displayed in the viewer with the view window set by the extent of the spectrum. Additional spectra may not be fully shown if they exceed the bounds of the plotted area, which are set based on the first displayed spectrum. The bounds can be changed via the Pan/Zoom tool or by deselecting the current spectra and selecting a different spectrum for display.

Much of the Specviz functionality can be handled within the tool or the Jupyter notebook using an API. The Toolbar below gives you several spectroscopic display options. Right click will open a dropdown with access to different options for each button.

Specviz Toolbar

Selecting/Showing Data Sets#

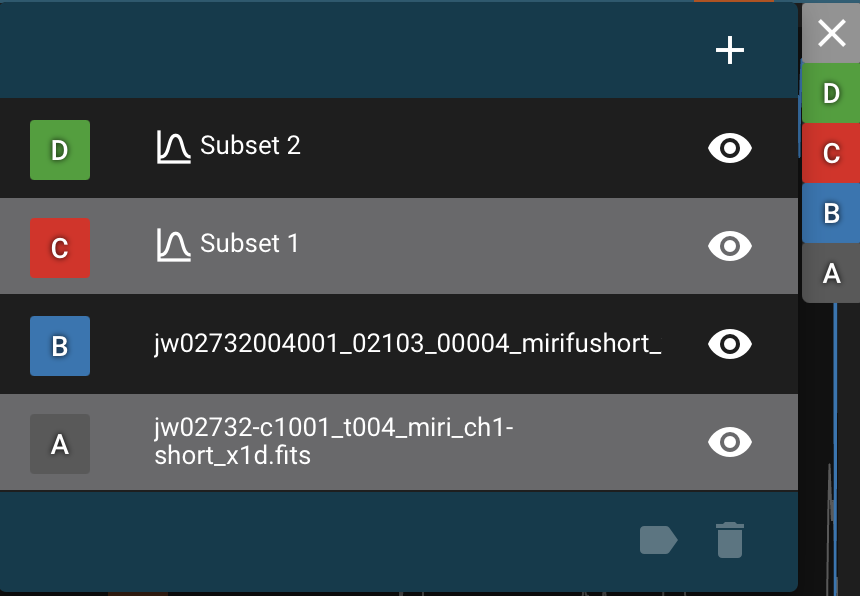

Data can be selected and de-selected in each viewer’s data menu, opened by clicking the data select icon button in the top left of the viewer. Here, you can click a checkbox next to the listed data to make the data visible (checked) or invisible (unchecked).

../_images/data_tab.png

In addition to toggling the visibility of a data layer, the data can be unloaded from a viewer by clicking the X button on the right. Data unloaded from the viewer will also be excluded as options from dataset dropdown menus in the various plugins. Unloaded data will be available to re-load into the viewer (by clicking the + icon) or remove permanently from the app (by clicking the trashcan icon) from an expandable section in the data menu:

../_images/specviz_remove_data.png

Cursor Information#

By moving your cursor along the spectrum viewer, you will be able to see information on the cursor position as well as the spectral axis value, pixel, and flux of the closest data point to the cursor. This information is displayed in the top bar of the UI, on the middle-right side.

By default, the cursor information will correspond to the closest data layer to the cursor. To change to a specific data-layer, click the layer-icon in the top bar to cycle between “auto”, “cursor”, or specific data layers.

Home#

This button will reset your zoom and panning to display the entire image.

Previous zoom is also available by right-clicking on the home icon and selecting the previous zoom icon. This will revert to the last saved zoom state. Zoom states are saved when beginning a zoom selection or when activating a pan/zoom tool.

Box Zoom#

The box zoom icon (box) and xrange zoom icon (x-range) zoom tools allow you to zoom by clicking and dragging with your mouse. The box zoom tool adjusts both the x and y range of the plot, whereas the x-range tool zooms only the x-axis to the selected region. While clicking and dragging you will see the selected region as a gray box, as below.

You can switch between the x-range zoom tool and the plot tool by right-clicking (or your trackpad equivalent) on the currently selected zoom icon on the viewer toolbar, which will open a menu of choices as in the screenshot below.

Pan Zoom#

There are several ways to pan around a spectrum or zoom in on features of interest. Right click will open a dropdown with access to different options described below.

Interactive Pan/Zoom (Desktop or Notebook Interface)#

You can find the following Pan/Zoom tools available in the viewer toolbar on the top right of the viewer.

2D Bidirectional Pan/Zoom#

The 2D zoom/pan icon icon allows you to zoom using the scroll wheel. The window will zoom into the area around your cursor. To pan, simply click and drag the window.

Horizontal/Vertical Zoom#

The horizontal zoom/pan icon (horizontal) and vertical zoom/pan icon (vertical) Zoom tools allow you to zoom along each axis, while locking the other. You can also zoom by scrolling.

Setting Viewer Bounds#

The limits of the x and y axes can be set in the Plot Option plugin using the expandable menu “Viewer bounds”.

Imviz Plot Options viewer bounds

From the API#

The Specviz helper contains a set of convenience methods to programmatically define the view of the spectrum viewer. You may instantiate a Specviz Helper via:

.. code-block:: python

from jdaviz import Specviz # Instantiate an instance of Specviz specviz = Specviz() # Display Specviz specviz.show()

Limit methods#

You can use the methods x_limits() and y_limits() to modify the field of view of Specviz. You can provide a scalar (which assumes the units of the loaded spectra), a Quantity, or 'auto' to automatically scale:

from astropy import units as u
specviz.x_limits()
specviz.x_limits(650*u.nm,750*u.nm)
specviz.y_limits('auto', 110.0)

Additionally, you can provide the limit methods with a SpectralRegion. Specviz shall set the bounds the upper and lower bounds of the SpectralRegion:

from specutils import SpectralRegion
bounds = SpectralRegion(0.45*u.nm, 0.6*u.nm)
specviz.x_limits(bounds)

Autoscale methods#

You can also quickly return to the default zoom using autoscale_x() and autoscale_y().

Axis Orientation methods#

To quickly flip an axis to change to and from ascending/descending, use flip_x() and flip_y().

Defining Spectral Regions#

Spectral regions can be defined by clicking on the horizontal region icon icon at the right of the viewer toolbar.

To select a region of interest, move the cursor to one of the end points (in wavelength) of the region you want to select, and drag it to the other end point. The selected region background will display in light gray color, and the spectral trace in color, coded to subset number and listed under the subsets dropdown.

Clicking on that selector, you can add more regions by selecting the “create new” entry.

From the API#

You can define a spectral region programmatically, by using the glue XRangeROI method and specifying the bounds of the spectral region (xmin, xmax).

from glue.core.roi import XRangeROI
sv = specviz.app.get_viewer('spectrum-viewer')
sv.toolbar_active_subset.selected = []
sv.apply_roi(XRangeROI(xmin, xmax))

To extract the properties of the defined spectral regions, you can use the get_spectral_regions() method:

../_images/spectral_region_5.png

Line Selection#

This button will allow you to click and select a vertical line when multiple lines from a line list are over-plotted. Further analysis can be performed on this line of interest.

See also

Line Lists

Documentation on using line lists within Specviz.

Plot Settings#

To access plot settings for a particular viewer (including the spectrum viewer), click the settings sliders icon icon in the viewer toolbar or open the Plot Options plugin.

Layer#

The top section of the Layer tab contains options to change the color of the spectrum (click the color square icon icon to see a color change menu and a default color palette), change visibility of the spectrum (eye icon icon), and a dropdown box to select which layer will have its settings changed.

Line Width#

Width of the line for the spectrum in pixels. Larger values are thicker lines on the plot.

Line Opacity#

Opacity of the line. Maximum (1) is fully opaque and minimum (0) is fully transparent.

Plot profile as steps#

Toggle on to view the spectrum as a continuous line or a step function.

Plot uncertainties#

Toggle on to view uncertainties attached to the spectrum, if any.

From the API#

Here is an example on how to set the plot options from the API.

plot_options = specviz.plugins['Plot Options']
plotopt.line_color = 'blue'
plotopt.line_width = 3
plot_options.uncertainty_visible = True
